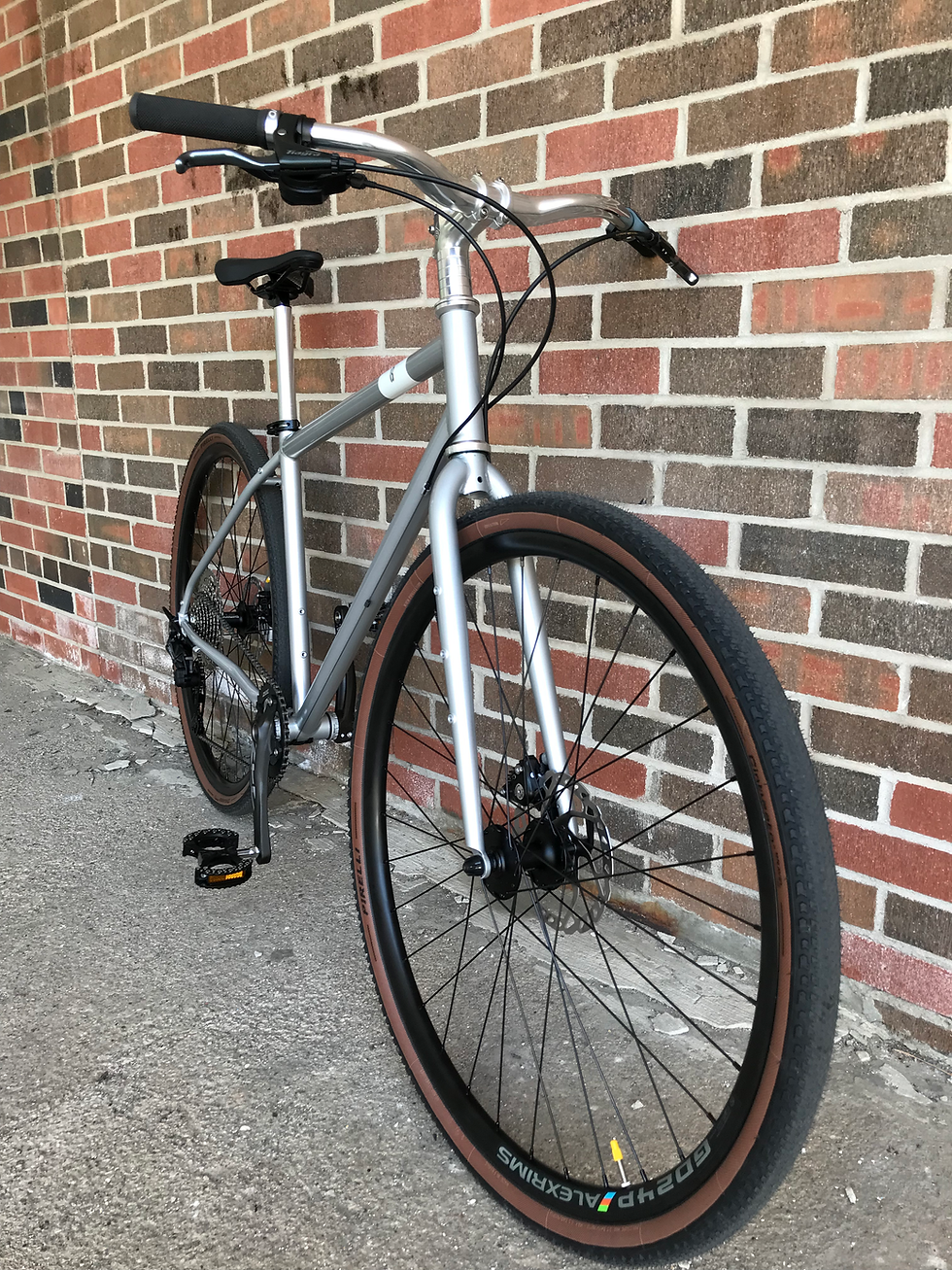

Beagle 13 All-Terrain 1x10

An upright riding position, hill oriented gearing, & gravel oriented tires.

4130 chromoly steel frame set
Upright Origin8 urban / touring handlebar
1 x 10 (36t x 11-46t) Shimano Zee/Deore transmission

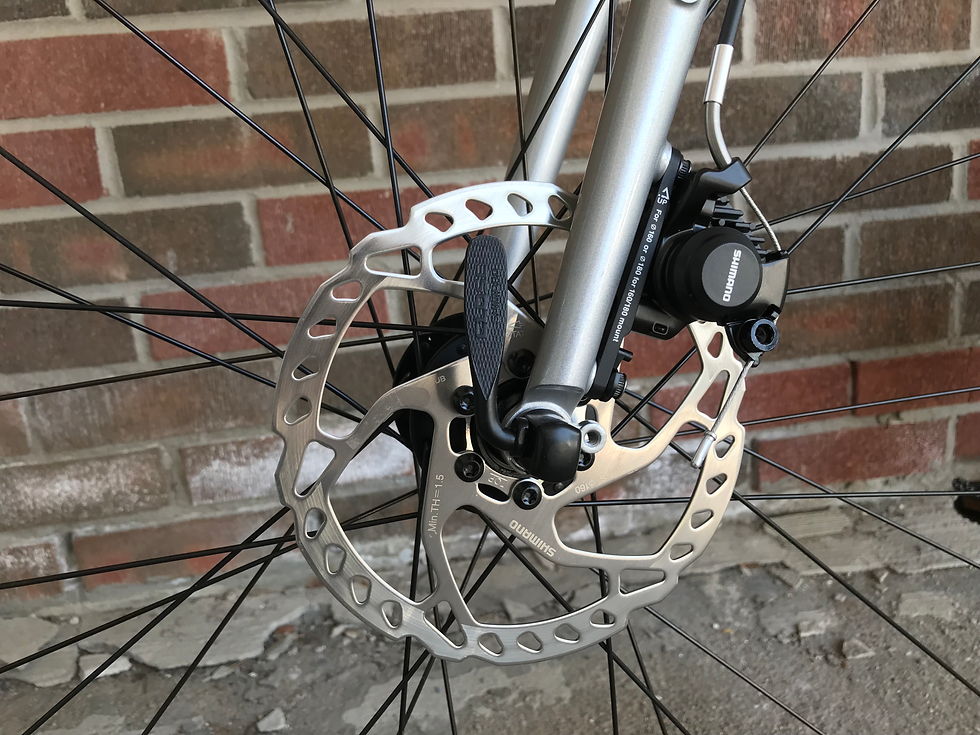

Mechanical Shimano disc braking system
700c x 40mm Pirelli Cinturato Gravel H tires
Weight: 26 lbs.

Parts List
Beagle 13 All-Terrain 1x10
Frame & Fork
4130 Chromoly Steel
Headset
Origin8 SSR Threadless (alum, silver)
Stem
Origin8 Pro Fit (alum, silver)
Handlebar
Orign8 Transit Ergo (alum, silver)
Grips / tape
Evo Fasten Hex
Seatpost
Origin8 Pro Fit (alum, silver)
Seatpost clamp
Origin8 Clampdown QR (black)
Saddle
Selle Italia X-Bow
Brake levers
Shimano Tiagra BL-4700
Brake calipers
Shimano BR-RS305
Brake rotors
Shimano SM-RT70 (160 mm)
Shifters
Shimano Zee SL-M640
Derailleur (front)
N/A
Derailleur (rear)
Shimano RD-M5120 10 SP
Crank set
Zee FC-M640 (36t)
Chain

Bottom bracket
Shimano Zee SM-BB51
Cogs
Shimano CS-M4100-10 11-46t
Wheel (front)
Alex GD24P 700c/ Shimano M475
Wheel (rear)
Alex GD24P 700c/ Shimano M475
Pedals
MKS Lambda
Tires
Pirelli Cinturato Gravel H 700 x 40

Specifications may vary. We are a small batch producer and may have to substitute components based on availability. The replacements will be of an equivalent quality and performance. Should similar parts be unavailable, price adjustments or refunds will be issued.
